Q9600 Real-time PCR System
Q9600 is a high-performance fluorescence quantitative PCR analyzer developed by Crytide. It features block and simulated tube module temperature control, dual operating systems, a built-in 10.1-inch high-definition color touchscreen, and a 6-channel fluorescence detection system. With precise temperature control, rapid heating and cooling rates, and intelligent software analysis, it is widely used in scientific research, clinical diagnostics, and food safety testing.
Product Features

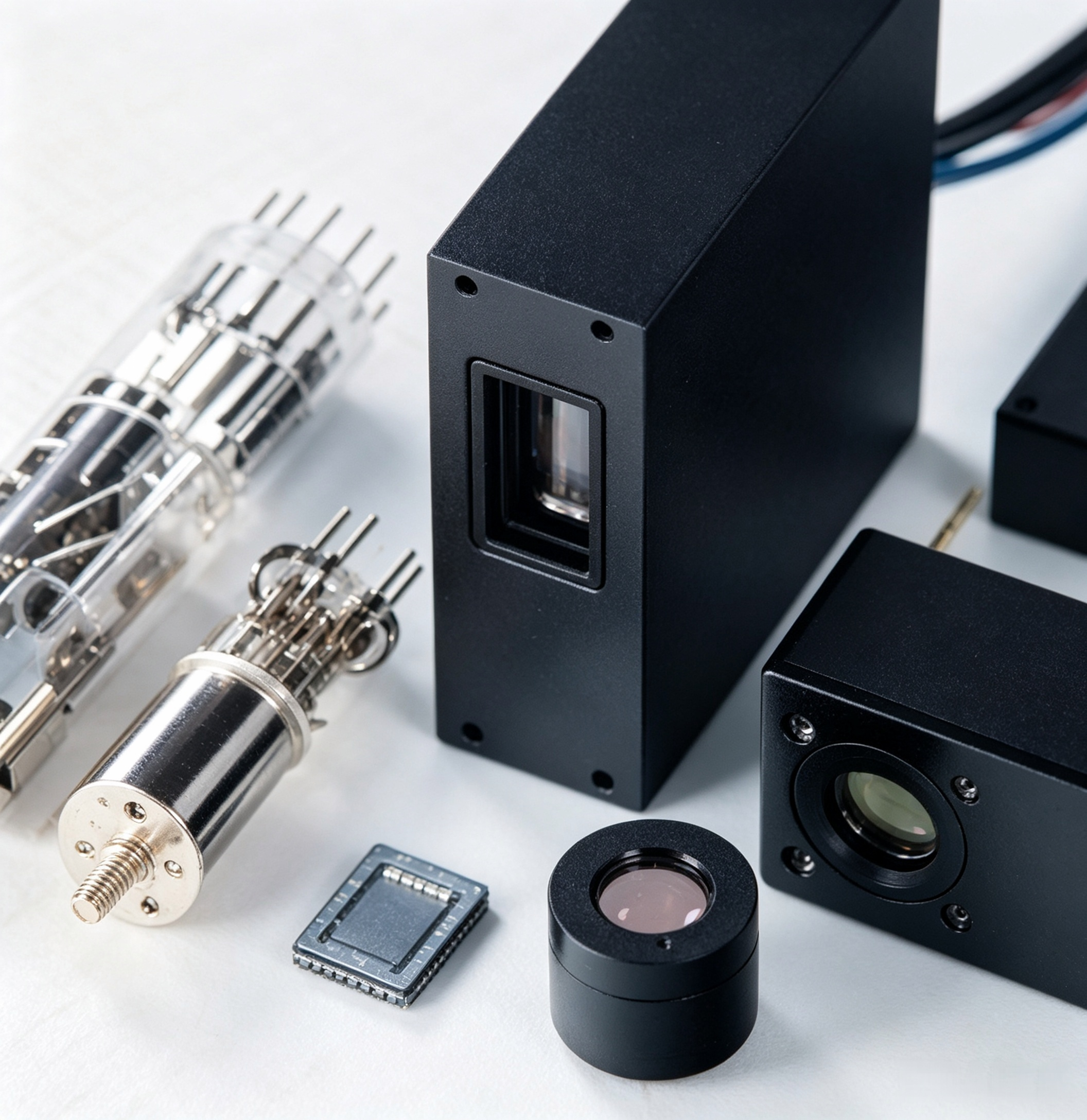

✦ High Sensitivity
Uses full-spectrum high-power LEDs and a Hamamatsu photomultiplier tube with top scanning for enhanced sensitivity and precision.
✦ High Precision
High-precision temperature control with module resolution of 0.1°C and uniformity of 0.1°C. Gradient range: 30–100°C; maximum temperature difference: 40°C.

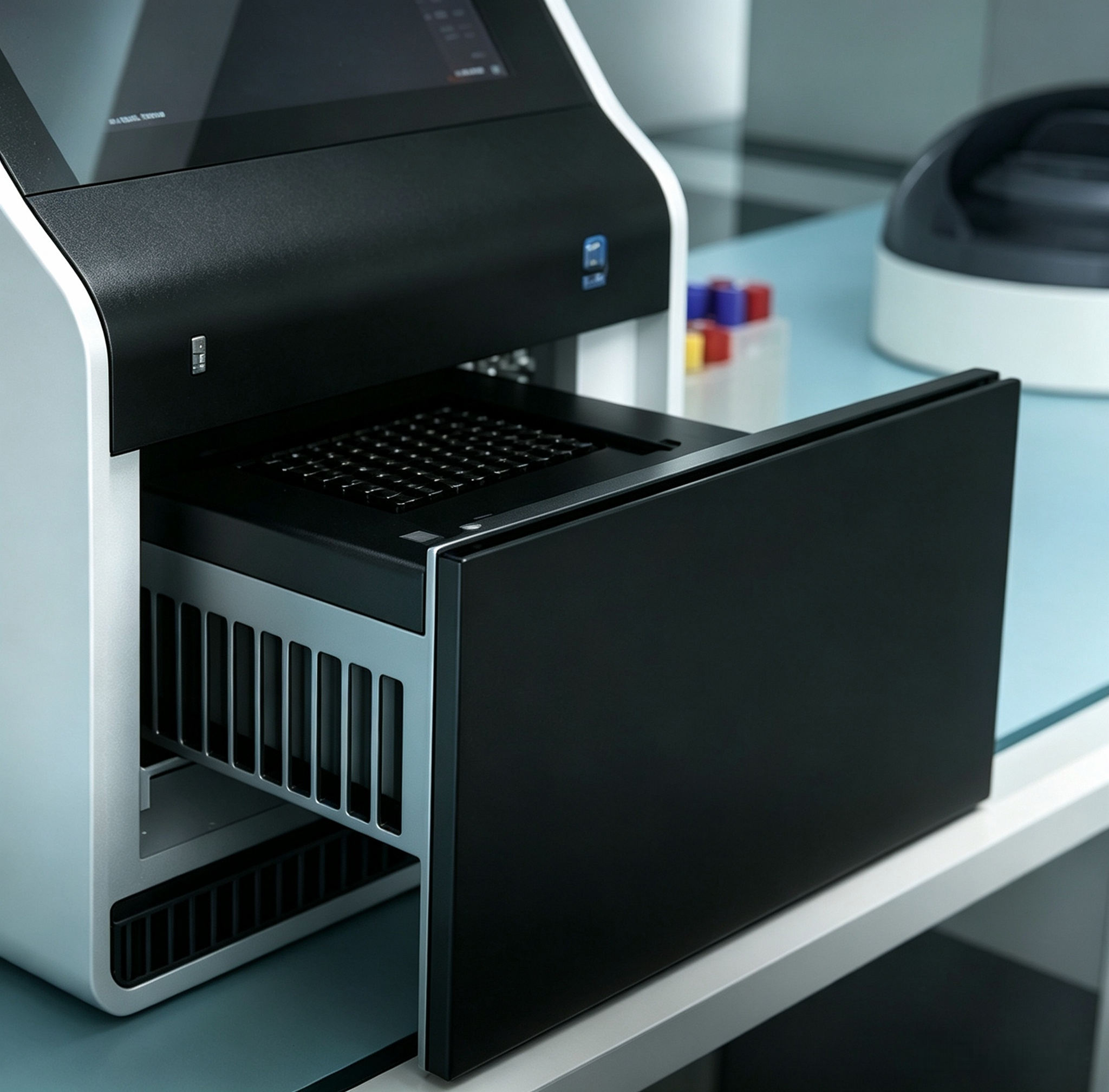

✦ Automation
Automated chamber ejection with 96-well high throughput; compatible with automated workstations.

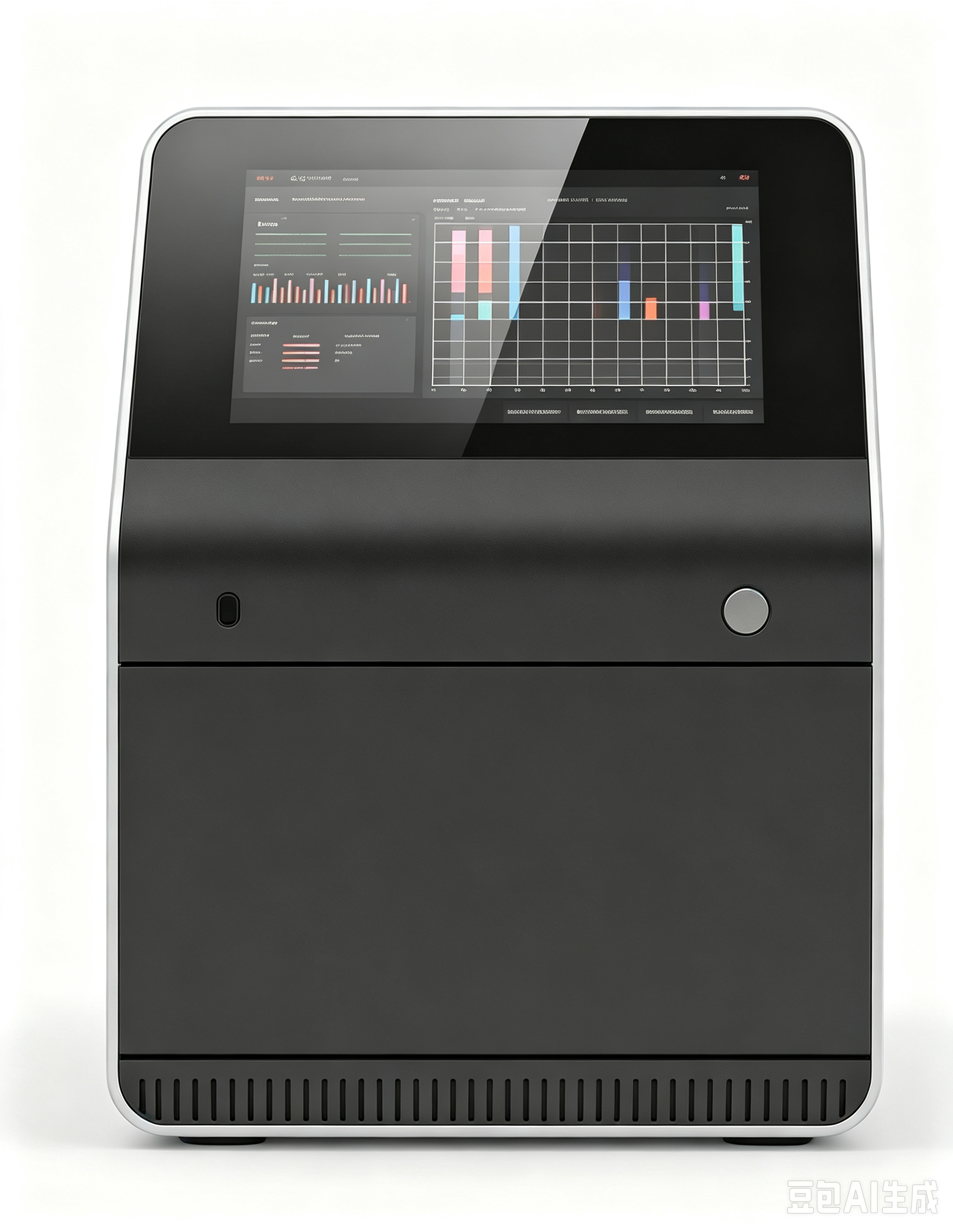

✦ International Design
Designed by a German professional team with an ergonomic layout that meets user needs and delivers a modern, high-tech feel.

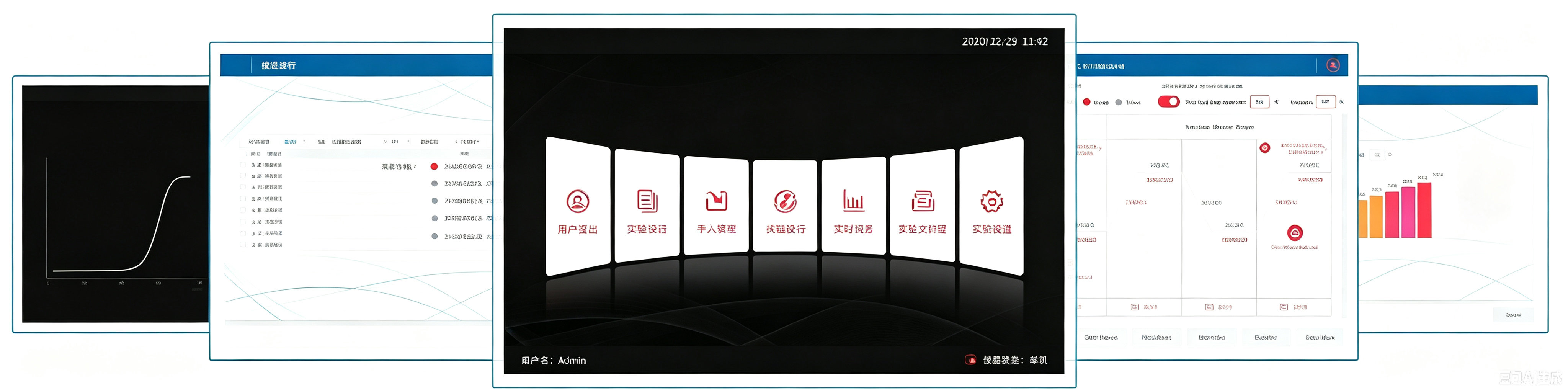

Software Display
◆
10.1-inch-inch large touchscreen with precise response and easy operation.
6 fluorescence channels, supporting 6-color-channel fluorescence detection.
Preset templates + "Quick Run" to start experiments immediately.
Compatible with fully automated workstations for unattended detection.
Flexible program settings to meet personalized user needs.
Multiple connection options for various use cases.

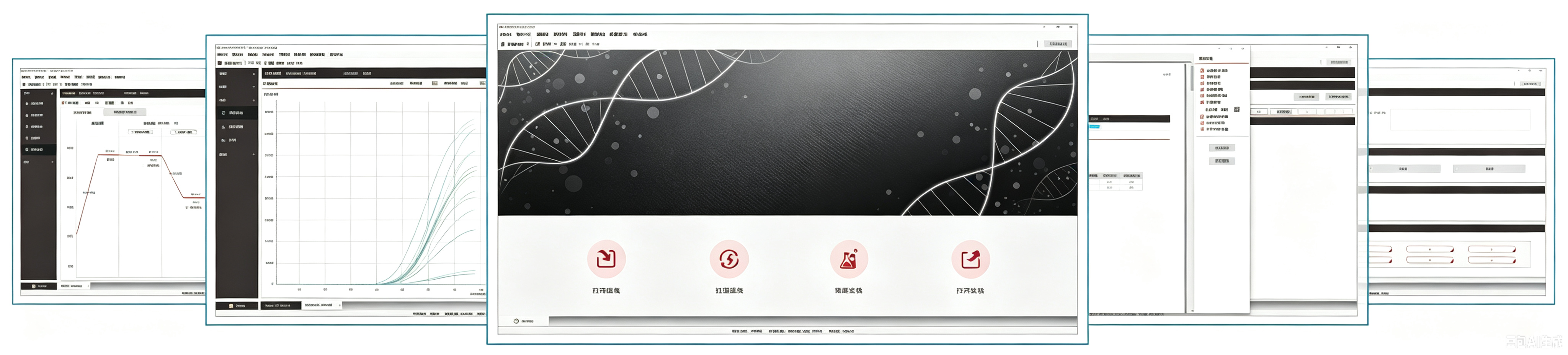

Dual-end operating system for an enhanced user experience.
Performance Specifications
| Attribute | Description |
|---|---|
| Name | Q9600 Real-time PCR System |
| Model | Q600 |
| Detection Throughput | 96-well (12×8) |
| Compatible Consumables | PCR single tubes, strip tubes, 96-well plates |
| Dynamic Range | 1-10¹⁰ copies |
| Detection Location | Top detection |
| Excitation Wavelength | 400-800nm |
| Detection Wavelength | 500-800nm |
| Fluorescence Channels | 6 channels |
| Compatible Fluorescent Dyes | Ch1: FAM/SYBR Green I, Ch2: JOE/HEX/TET/VIC, Ch3: NED/TAMRA/Cy3,, Ch4: ROX/Texas Red, Ch5: Cy5, Ch6: Cy5.5 |
| Excitation Light Source | LED |
| Detector | Photomultiplier tube (PMT) |
| Temperature Range | 4~105°C |
| Temperature Accuracy | ≤±0.1°C |
| Temperature Accuracy | ≤±0.1°C |
| Temperature Uniformity | ≤±0.1°C |
| Maximum Heating/Cooling Rate | ≥6°C/s |
| Gradient Temperature Range | 1-40°C |
| Module Temperature Control Mode | Block mode, simulated Tube mode |
| Liquid Volume | 5-100 μL |
| Hot Lid Temperature Range | 30°C–110°C (default 105°C) |
| Fluorescence Intensity Detection Repeatability | CV ≤ 3% |
| Scan Mode | Full plate scan, designated line scan |
| Touchscreen | 10.1-inch touchscreen |
| Software Features | Absolute quantification, relative quantification, melting curve analysis, SNP detection, HRM, rapid run, and more. |
| Operating System | PC and touchscreen dual-mode operation |
| Signal Interface | USB A x2, USB B, RJ45 |
| Power Failure Protection | Yes, data can be recovered after power is restored. |
| Sample Chamber Control Mode | Automatic in/out; dual PC and touchscreen software control with pre-installed interface, compatible with fully automated workstations. |
| Input Power | 100-240V, 50/60Hz, 850W |
| Dimensions | 320(W) × 525(L) × 420(H) mm |
| Weight | 27 Kg |
Interested in the Q9600 Real-Time PCR System?
Contact us for more information, pricing, and technical support.
